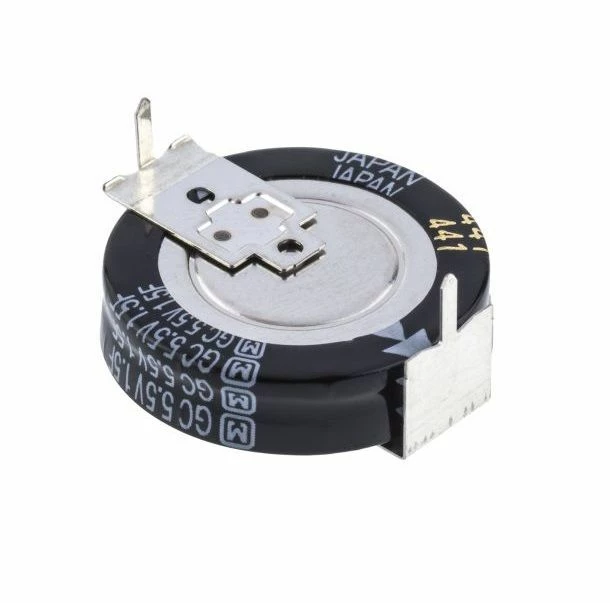

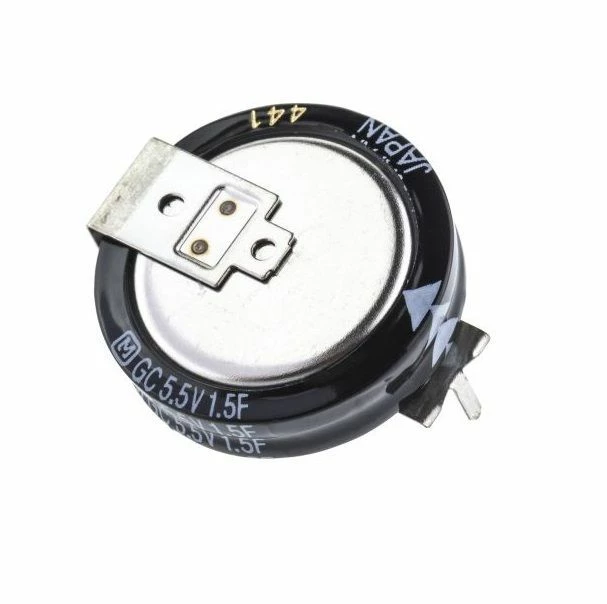

Vendora Πυκνωτής Panasonic 1.5F, 5.5V DC

Panasonic SG Series Electric Double Layer Capacitors.
Panasonic 1.5F Supercapacitor EDLC -20 → +80% Tolerance, SG 5.5V dc, Through Hole.
Panasonic SG electric double layer capacitors (known as gold capacitors) can be compared to secondary batteries and provide the highest level of volumetric efficiency. No charging circuit is required and there is no limit to the number of charge and discharge cycles. SG supercapacitors utilise the release and absorption reaction of ions and do not rely on a chemical reaction to create current.
Product Features:
• 1000 h endurance at +70°C • Stacked coin type
• General purpose
• Tabbed lead terminals
Applications :
These supercapacitors are recommended for memory backup. Suitable applications include video and audio devices, data terminals, printers, rice cookers and intelligent remote controls.
Capacitance : 1.5 F.
Voltage : 5.5 V dc.
Mounting Type : Through Hole.
Minimum Operating Temperature : -25°C.
Maximum Operating Temperature : +70°C.
Diameter : 19mm.
Height : 6mm.
Dimensions : 19 (Dia.) x6.5mm.
Lead Pitch : 20mm.
Lifetime : 1000h.
Series : SG.
Tolerance : -20 → +80%.
Depth : 6 mm, 19 mm.
Tolerance Plus : +80%.
Lead Diameter : 1mm.
Tolerance Minus : -20%.
Capacitor Family : Electric Double Layer.
Terminal Type : Through Hole.
